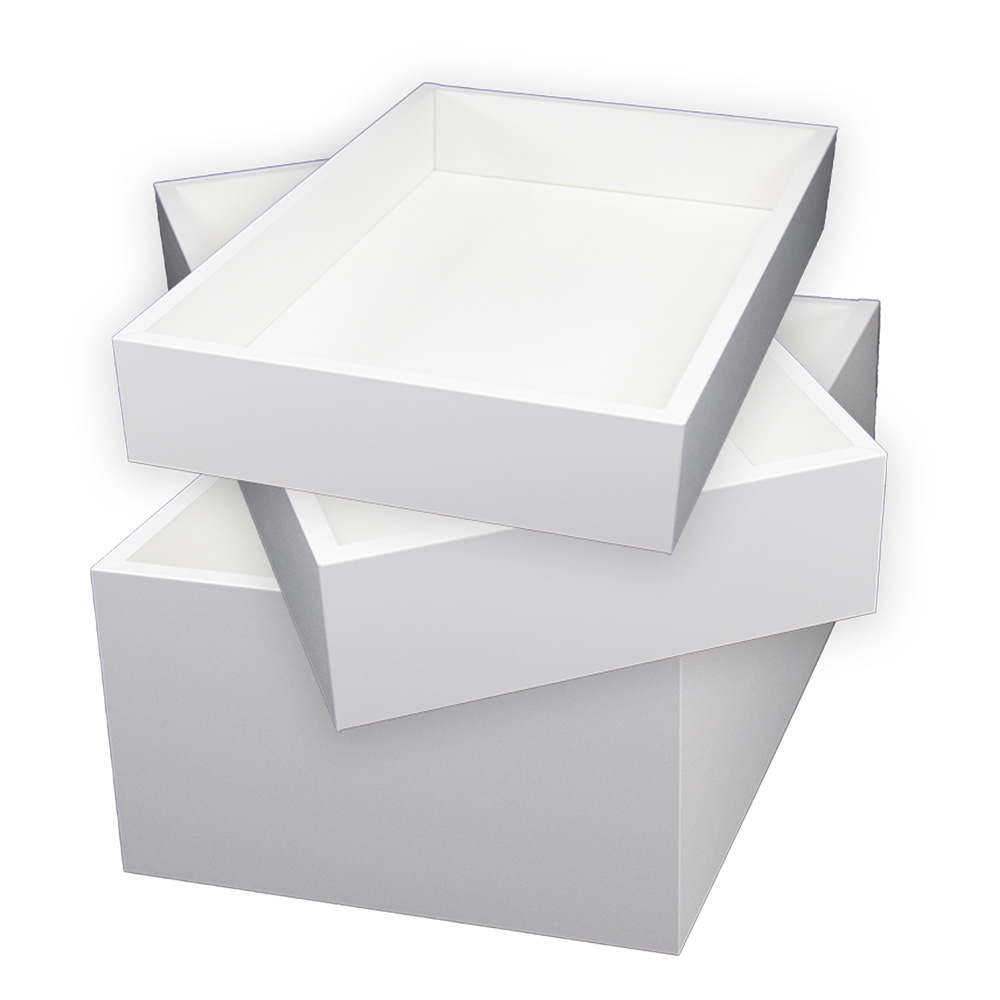

Available in 3", 4" and 7" heights.
All drawer boxes are 21" in length.
Enter a Width between 6" and 32", to the nearest 1/16" (.0625).
Use the Conversion Table for assistance converting inches to decimals.

Drawer boxes must be slightly smaller than the cabinet opening to allow room for the drawer slides and proper operation. To determine the correct size for your new drawer boxes, start with the cabinet opening measurements.

1. Drawer Box Width
Measure the width of the cabinet opening, then subtract 5/8"

Drawer box width = opening width − 5/8" (.625")
Example: 15" opening − .625" = 14.375" wide drawer box

2. Drawer Box Height
Drawer boxes and hardware require 3/4" of vertical clearance.

Measure the height of the cabinet opening, subtract 3/4", and then select the standard drawer box height that fits within that space.

Available drawer box heights: 3", 4", or 7"

Example:
4 1/2" opening − 3/4" clearance = 3 3/4" maximum drawer box height
Since a 4" drawer box would be too tall, the correct choice would be a 3" drawer box

• Drawer Height *

  •  3" Height (3.75" cabinet opening height minimum)
  •  4" Height (4.75" cabinet opening height minimum)
  •  7" Height (7.75" cabinet opening height minimum)

• Height *

• Width *

  Min: 6Max: 32

• Cost Lookup - Customer *

• Square Feet *

• Weight (kg) *
